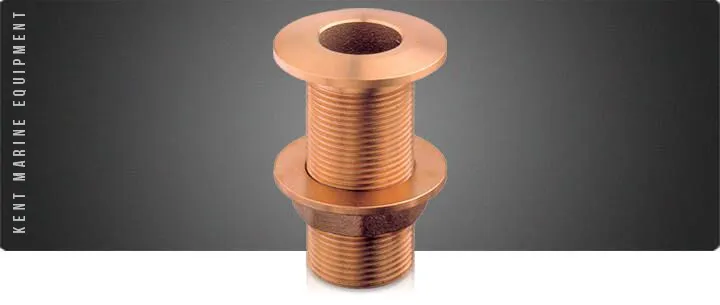

Passe-coque bronze GUIDI
• Guidi
Passe-coques en bronze
Homologué RINA
Conforme à la norme ISO9093-1
| Réf. | Matière | Filetage | Diamètre | Diamètre extérieur | Diamètre de passage | Diamètre d'entrée | Diamètre intérieur | longueur filetage | Dimensions (L x H) | D | F | G | H | H1 | Poids |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PA034 | Bronze | 3/4 " | 3/4 " | 47 mm | 19 mm | 3/4 " | 19 mm | 70 mm | 80 x 75 mm | 47 mm | 19 mm | 3/4 " | 75 mm | 70 mm | 250 g |
| PA100 | Bronze | 1 " | 1 " | 57 mm | 25 mm | 1 " | 25 mm | 80 mm | x 85 | 57 mm | 25 mm | 1 " | 85 mm | 80 mm | 360 g |
| PA212 | Bronze | 2-1/2 " | 63 mm | 108 mm | 63 mm | 2"1/2 | 63 mm | 120 mm | x 128 | 108 mm | 63 mm | 2-1/2 " | 128 mm | 120 mm | 1860 g |
| PA300 | Bronze | 3 " | 76 mm | 122 mm | 76 mm | 3 " | 76 mm | 150 mm | x 158 | 122 mm | 76 mm | 3 " | 158 mm | 150 mm | 2.65 kg |
| PA012 | Bronze | 1/2 " | 1/2 " | 40 mm | 13 mm | 1/2 " | 13 mm | 65 mm | 65 x 70 mm | 40 mm | 13 mm | 1/2 " | 70 mm | 65 mm | 170 g |
| PA114 | Bronze | 1-1/4 " | 1-1/4 " | 67 mm | 32 mm | 1-1/4 " | 32 mm | 85 mm | 80 x 96 mm | 67 mm | 32 mm | 1-1/4 " | 91 mm | 85 mm | 610 g |
| PA112 | Bronze | 1-1/2 " | 1-1/2 " | 75 mm | 38 mm | 1-1/2 " | 38 mm | 90 mm | 90 x 96 | 75 mm | 38 mm | 1-1/2 " | 96 mm | 90 mm | 755 g |
| PA200 | Bronze | 2 " | 2 " | 88 mm | 50 mm | 2 " | 50 mm | 100 mm | x 107 | 88 mm | 50 mm | 2 " | 107 mm | 100 mm | 1.04 kg |
Prix public :
76.61 € TTC - 63.84 € HT
Prix public :
107.74 € TTC - 89.78 € HT
Prix public :
47.64 € TTC - 39.7 € HT
Prix public :
56.32 € TTC - 46.93 € HT
Prix public :
28.38 € TTC - 23.65 € HT
Prix public :
36.9 € TTC - 30.75 € HT
Prix public :
49.55 € TTC - 41.29 € HT
Prix public :
69.55 € TTC - 57.96 € HT
Prix public :
83.81 € TTC - 69.84 € HT
Prix public :
117.48 € TTC - 97.9 € HT
Prix public :
205.84 € TTC - 171.53 € HT
Prix public :
287.38 € TTC - 239.48 € HT
